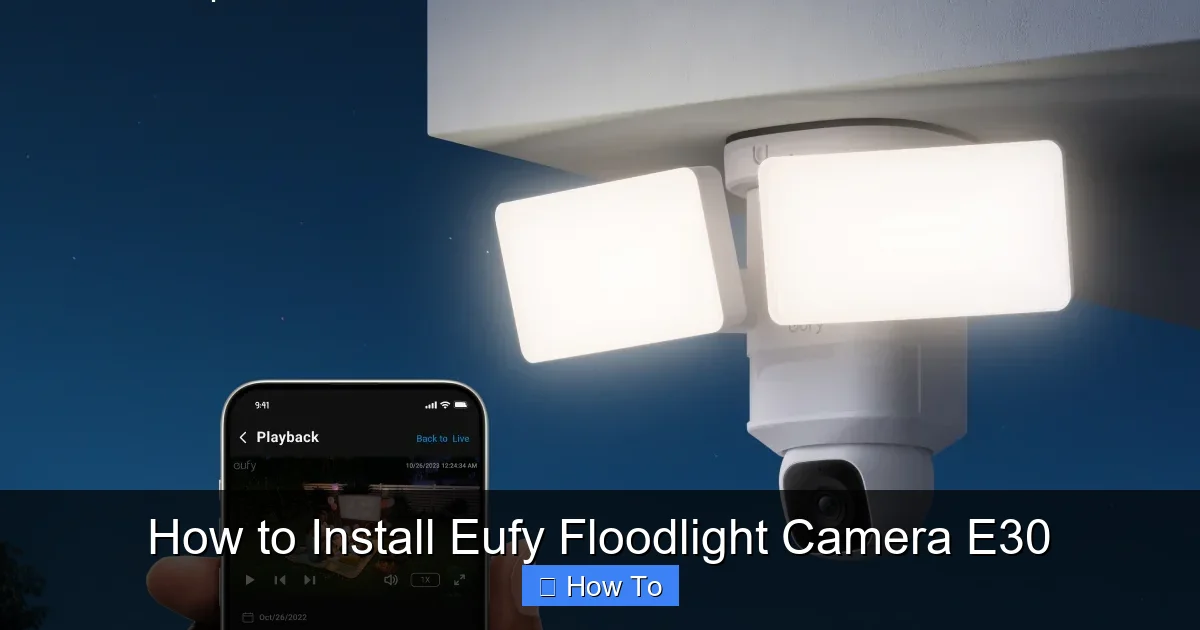

How to Install Eufy Floodlight Camera E30

Installing the Eufy Floodlight Camera E30 is easier than you think—even if you’re not an electrician. This guide walks you through every step, from turning off power to final app configuration, ensuring a secure and functional setup.

Key Takeaways

• Turn off power at the breaker before starting: Safety is critical when working with electrical wiring. Always shut off the circuit to avoid shocks or damage.
• Use the included mounting template: This ensures accurate drill hole placement and a secure, level installation.
• Connect wires correctly (black to black, white to white, green to ground): Proper wiring prevents malfunctions and ensures the camera and lights work as intended.
• Download the Eufy Security app before installation: The app guides setup, connects the camera to Wi-Fi, and enables smart features like motion detection and alerts.
• Test the camera and lights before finalizing: Power on and check both lighting and video feed to catch issues early.
• Adjust motion zones and sensitivity in the app: Customize detection areas to reduce false alarms from trees or passing cars.
• Secure all screws and weatherproof connections: Prevent water damage and ensure long-term durability in outdoor conditions.

How to Install Eufy Floodlight Camera E30

Looking to boost your home security with smart lighting and surveillance? The Eufy Floodlight Camera E30 combines bright LED floodlights with a high-definition security camera, all in one sleek, weather-resistant design. Whether you’re replacing an old floodlight or installing a new one, this guide will walk you through the entire process—step by step—so you can get your E30 up and running safely and efficiently.

In this comprehensive guide, you’ll learn how to install the Eufy Floodlight Camera E30 on an exterior wall or eave, connect it to your home’s electrical system, pair it with the Eufy Security app, and customize its settings for optimal performance. We’ll cover everything from safety precautions and tools needed to troubleshooting common issues. By the end, you’ll have a fully functional smart security system that deters intruders and keeps your property under 24/7 watch.

What You’ll Need Before Starting

Before you begin, gather all the necessary tools and materials. Having everything ready will save time and prevent frustration mid-installation.

Tools Required

• Screwdriver (Phillips and flathead)
• Drill with drill bits (for mounting)
• Voltage tester (non-contact)
• Ladder (stable and tall enough for your installation height)
• Wire strippers
• Pliers
• Electrical tape
• Wire nuts (usually included, but good to have extras)

Materials Included with the Eufy E30

• Eufy Floodlight Camera E30 unit
• Mounting bracket
• Screws and wall anchors
• Mounting template
• Wire connectors (wire nuts)
• User manual and quick start guide

Optional but Helpful

• Assistant (for holding the unit during installation)
• Smartphone or tablet with the Eufy Security app installed
• Wi-Fi network with 2.4 GHz band (required for setup)
• Outdoor-rated extension cord (for testing before permanent wiring)

Step 1: Turn Off Power and Verify It’s Off

Safety is the most important part of any electrical installation. Before touching any wires, you must turn off the power supply to the existing light fixture or junction box.

Locate the Correct Circuit Breaker

Go to your home’s electrical panel (breaker box) and find the switch that controls the outdoor light where you’ll install the Eufy E30. If the breakers aren’t labeled, turn them off one by one and test the light with a lamp or voltage tester to identify the correct one.

Switch Off the Breaker

Flip the breaker to the “OFF” position. For extra safety, place a piece of tape over it with a note like “Do Not Turn On – Working on Outdoor Light.” This prevents someone else from accidentally restoring power while you’re working.

Test the Wires with a Voltage Tester

Even after turning off the breaker, always double-check that the power is off. Use a non-contact voltage tester near the wires in the junction box. If the tester doesn’t beep or light up, the power is safely off. If it does, recheck the breaker or consult an electrician.

Step 2: Remove the Old Fixture (If Applicable)

If you’re replacing an existing floodlight, you’ll need to remove it before installing the Eufy E30.

Unscrew the Mounting Bracket

Use a screwdriver to remove the screws holding the old fixture to the wall or eave. Have someone hold the light if it’s heavy or awkward to manage alone.

Disconnect the Wires

Carefully pull the fixture away from the wall to expose the wires. You’ll typically see three wires: black (hot), white (neutral), and green or bare copper (ground). Unscrew the wire nuts and separate the wires. Note how they were connected so you can replicate it with the Eufy.

Remove the Old Mounting Bracket

Unscrew and remove the old bracket. Clean the area if there’s old caulk or debris. This ensures a clean surface for the new installation.

Step 3: Prepare the Mounting Area

A secure and level installation starts with proper preparation. The Eufy E30 comes with a mounting template to make this step easy.

Use the Mounting Template

Hold the included template against the wall where you want to install the camera. Make sure it’s level using a spirit level. Mark the screw holes with a pencil. The template ensures the bracket aligns correctly with the electrical box.

Drill Pilot Holes

Drill pilot holes at the marked spots. Use a drill bit slightly smaller than the screws provided. If you’re mounting into wood, this prevents splitting. For brick or concrete, use a masonry bit and wall anchors.

Check Wire Access

Ensure the electrical wires from the wall can reach the back of the Eufy mounting bracket. If the wires are too short, you may need to extend them using wire nuts and additional wire (same gauge).

Step 4: Install the Mounting Bracket

The mounting bracket is the backbone of your installation. It must be secure to support the weight of the camera and lights.

Attach the Bracket to the Wall

Line up the bracket with the pilot holes and insert the screws. Tighten them firmly, but don’t over-tighten, as this can strip the holes or damage the bracket. The bracket should sit flush against the wall.

Secure the Ground Wire

Locate the green grounding screw on the bracket. Wrap the bare copper (ground) wire from your house around it and tighten the screw. This ensures the unit is properly grounded for safety.

Step 5: Connect the Wires

Now it’s time to connect the Eufy E30 to your home’s electrical system. This step requires attention to detail to avoid shorts or malfunctions.

Match Wire Colors

The Eufy E30 has three wires: black (hot), white (neutral), and green (ground). Connect them as follows:

• Black (Eufy) to Black (house): This is the live wire that carries power.
• White (Eufy) to White (house): This completes the circuit.
• Green (Eufy) to Ground (house): This provides safety grounding.

Twist the matching wires together clockwise using pliers, then secure them with a wire nut. Give each connection a gentle tug to ensure it’s tight.

Use Electrical Tape for Extra Security

After securing with wire nuts, wrap each connection with electrical tape. This adds insulation and prevents the nuts from loosening over time.

Tuck Wires Neatly into the Junction Box

Carefully push the connected wires back into the electrical box. Avoid pinching or bending them sharply. A neat wire bundle prevents strain and makes future maintenance easier.

Step 6: Attach the Eufy E30 to the Bracket

With the wiring complete, it’s time to mount the camera unit.

Align the Camera with the Bracket

Hold the Eufy E30 against the bracket. The mounting slots on the back of the unit should align with the bracket’s hooks or screws.

Secure with Mounting Screws

Insert the provided screws through the camera’s mounting holes and into the bracket. Tighten them evenly to avoid warping the housing. Don’t overtighten—snug is enough.

Adjust the Angle

The E30 allows you to adjust the camera and floodlights. Tilt the camera to cover your desired area (e.g., driveway, front door). Angle the lights to illuminate the space without blinding neighbors or creating glare.

Step 7: Restore Power and Test the Unit

Before celebrating, you need to test the installation to ensure everything works.

Turn the Breaker Back On

Return to the electrical panel and flip the breaker to “ON.” The Eufy E30 should power up. You’ll hear a startup sound and see the camera’s LED indicator light.

Check the Floodlights

The lights should turn on automatically if set to “Always On” mode, or activate when motion is detected. If they don’t, double-check the wiring and breaker.

Verify the Camera Feed

Open the Eufy Security app on your phone. If the camera is connected, you should see a live video feed. If not, proceed to the app setup.

Step 8: Set Up the Eufy Security App

The Eufy Security app is essential for controlling your camera, receiving alerts, and customizing settings.

Download and Open the App

If you haven’t already, download the “Eufy Security” app from the Apple App Store or Google Play. Create an account or log in if you have one.

Add the Camera

Tap the “+” icon and select “Add Device.” Choose “Floodlight Camera” and follow the on-screen instructions. The app will guide you through scanning the QR code on the camera or entering the serial number.

Connect to Wi-Fi

The E30 requires a 2.4 GHz Wi-Fi network (5 GHz is not supported). Enter your Wi-Fi password when prompted. The camera will connect and sync with the app.

Complete Setup

Name your camera (e.g., “Front Yard Floodlight”), set your time zone, and enable features like motion detection and night vision. The app will confirm when setup is complete.

Step 9: Customize Settings for Optimal Performance

Take full advantage of the Eufy E30’s smart features by adjusting settings in the app.

Adjust Motion Detection Zones

In the app, go to the camera settings and select “Motion Detection.” Draw zones on the video feed to specify areas where motion should trigger alerts (e.g., driveway) and ignore others (e.g., street).

Set Sensitivity Levels

Choose from low, medium, or high sensitivity. High sensitivity detects small movements (like animals), while low reduces false alarms. Test and adjust based on your environment.

Configure Light Settings

Decide when the floodlights turn on:

• Always On: Lights stay on all night.
• Motion Activated: Lights turn on only when motion is detected.
• Smart Mode: Lights activate based on ambient light and motion.

You can also set a timer or schedule for the lights.

Enable Two-Way Audio

The E30 has a built-in microphone and speaker. Enable two-way audio in the app to talk to visitors or deter intruders remotely.

Set Up Alerts and Notifications

Choose how you receive alerts: push notifications, email, or both. You can also set quiet hours to avoid disturbances at night.

Step 10: Final Checks and Maintenance Tips

Once everything is working, perform a final inspection to ensure long-term reliability.

Check for Gaps and Seal if Needed

Inspect around the mounting area for gaps where water could enter. Use outdoor-rated silicone caulk to seal any openings. This prevents moisture damage.

Secure All Screws

Double-check that all mounting screws are tight. Vibration from wind or movement can loosen them over time.

Clean the Camera Lens

Wipe the lens with a soft, dry cloth to remove dust or smudges. A clean lens ensures clear video quality.

Test Monthly

Every month, test the camera, lights, and motion detection to ensure everything is functioning. Update the app and firmware when prompted.

Troubleshooting Common Issues

Even with careful installation, you might encounter problems. Here’s how to fix the most common ones.

Camera Won’t Power On

• Check that the breaker is on and the voltage tester confirms power.
• Verify all wire connections are secure and correct.
• Ensure the ground wire is properly attached.

No Video Feed in the App

• Confirm the camera is connected to Wi-Fi (check the app’s device status).
• Restart the camera by turning the breaker off and on.
• Re-add the camera in the app if necessary.

Floodlights Not Turning On

• Check the light settings in the app—ensure they’re not set to “Off.”
• Test motion detection by walking in front of the camera.
• Verify the bulb isn’t faulty (rare, but possible).

Frequent False Alarms

• Adjust motion zones to exclude trees, bushes, or passing cars.
• Lower the sensitivity setting.
• Reposition the camera angle if needed.

Poor Wi-Fi Signal

• Move your router closer or use a Wi-Fi extender.
• Ensure the camera is within 100–150 feet of the router (less through walls).
• Avoid placing the camera near metal objects or large appliances.

Conclusion

Installing the Eufy Floodlight Camera E30 is a smart investment in your home’s security and convenience. With its bright LED lights, 2K video quality, and intelligent motion detection, the E30 offers peace of mind day and night. By following this step-by-step guide, you’ve safely wired the unit, connected it to your home’s power, paired it with the Eufy Security app, and customized its settings for your lifestyle.

Remember, safety comes first—always turn off power and test wires before working. Take your time with each step, especially wiring and mounting, to ensure a secure and lasting installation. Once set up, the E30 requires minimal maintenance and delivers reliable performance in all weather conditions.

Whether you’re deterring intruders, monitoring deliveries, or simply lighting up your yard, the Eufy Floodlight Camera E30 is a powerful tool for modern home security. Enjoy your new level of protection—and rest easy knowing your property is always under watch.
