How to Install Eufy Wired Doorbell

This guide walks you through how to install eufy wired doorbell safely and correctly. You’ll learn about tools, wiring, app setup, and common pitfalls to avoid.

Key Takeaways

Turn off power first: Always shut off electricity at the breaker before working on doorbell wiring to prevent shocks or damage.
Check compatibility: Ensure your existing doorbell transformer provides 8–24V AC and at least 10VA to power the eufy wired doorbell.
Use the right tools: A voltage tester, screwdriver, drill, and wire strippers are essential for a smooth installation.
Follow the app setup: The eufy Security app guides you through Wi-Fi pairing, motion settings, and notifications.
Test before finalizing: Power on and test the doorbell before securing it permanently to avoid rework.
Troubleshoot common issues: No power? Check wiring, transformer, and breaker. Poor Wi-Fi? Reposition or use a range extender.
Maintain regularly: Clean the lens and check connections every few months to ensure optimal performance.

How to Install Eufy Wired Doorbell: A Complete Step-by-Step Guide

Upgrading your home with a smart doorbell like the eufy wired doorbell is a smart move. It gives you real-time alerts, two-way audio, and crystal-clear video—all without monthly fees. But before you enjoy those features, you need to install it properly. Don’t worry—this guide will walk you through how to install eufy wired doorbell safely and efficiently, even if you’re not an electrician.

Whether you’re replacing an old doorbell or installing one for the first time, this guide covers everything: tools, safety, wiring, app setup, and troubleshooting. By the end, you’ll have a fully functional smart doorbell that enhances your home security.

Let’s get started.

What You’ll Need Before You Begin

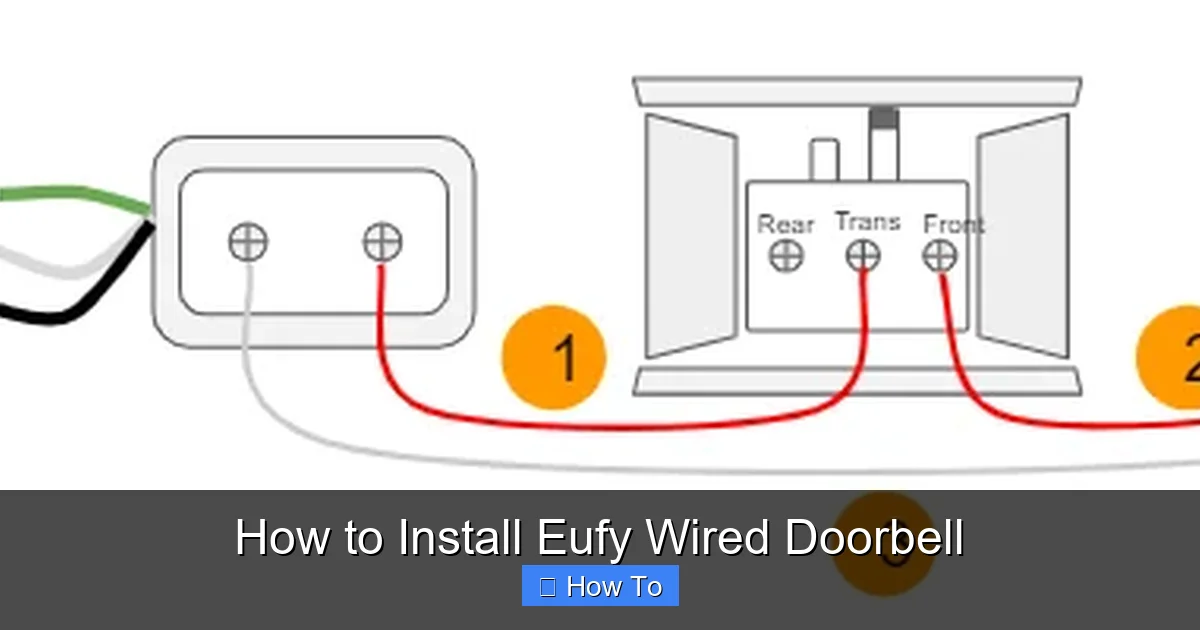

Visual guide about How to Install Eufy Wired Doorbell

Image source: i.ytimg.com

Before touching any wires, gather your tools and materials. Having everything ready saves time and reduces frustration.

Essential Tools

Screwdriver set: Both Phillips and flathead for removing covers and mounting hardware.
Voltage tester: A non-contact voltage tester is best to confirm power is off.
Wire strippers: To expose fresh wire ends if needed.
Drill and drill bits: For mounting the doorbell if new holes are required.
Level: Ensures your doorbell is straight.
Pencil or marker: For marking drill points.
Safety gloves and goggles: Protect yourself during installation.

Included in the Box

When you unbox your eufy wired doorbell, you should find:

The eufy wired doorbell unit
Mounting bracket
Screws and anchors
Wire labels (for identifying front and transformer wires)
Chime module (if replacing a mechanical chime)
Quick start guide

Optional but Helpful

Smartphone with eufy Security app installed: Download it from the App Store or Google Play.
Wi-Fi network name and password: You’ll need this during setup.
Helper: Someone to hold the doorbell while you wire it can be useful.
Ladder: If your doorbell is mounted high.

Step 1: Turn Off the Power

Safety comes first. Electricity and water don’t mix, and neither do live wires and fingers.

Locate Your Circuit Breaker

Go to your home’s main electrical panel. Look for a breaker labeled “doorbell,” “chime,” or “front door.” If you can’t find it, turn off the main breaker to be safe.

Test the Power

Use your non-contact voltage tester near the existing doorbell button. Press the button—if the tester beeps or lights up, power is still on. Double-check the breaker and turn it off again.

Pro Tip: Tape the breaker switch in the “off” position so no one accidentally turns it back on while you’re working.

Step 2: Remove the Old Doorbell

Now that power is off, it’s time to remove the existing doorbell.

Unscrew the Faceplate

Use your screwdriver to remove the screws holding the old doorbell button in place. Gently pull the button away from the wall.

Label the Wires

You’ll see two wires connected to the back: one from the front door (usually marked “Front”) and one from the transformer (often labeled “Trans”). Use the wire labels included with your eufy kit to mark them. This prevents confusion later.

Disconnect the Wires

Loosen the terminal screws and carefully remove the wires. Keep them separated so they don’t touch each other or the wall.

Remove the Old Mounting Plate

Unscrew and remove the old mounting plate. If it’s glued or sealed, use a utility knife to cut through any caulk.

Step 3: Check Electrical Compatibility

Not all doorbells work with all homes. The eufy wired doorbell requires specific electrical conditions.

Check Voltage and Power

Your doorbell transformer should output between 8 and 24 volts AC and provide at least 10 volt-amperes (VA). Most modern homes meet this, but older homes may not.

To check:

Locate the transformer (usually near the furnace, basement, or attic).
Look for a label with voltage and VA ratings.
If it’s below 8V or under 10VA, you may need to upgrade the transformer.

Test the Wires

Use a multimeter to test the voltage between the two wires. Set it to AC voltage and touch the probes to each wire. You should see a reading between 8 and 24V.

Note: If you get no reading, the transformer may be faulty or the breaker may not be fully off.

Step 4: Prepare the Wires

Good connections are key to reliable performance.

Strip the Wire Ends

If the wire ends are frayed, corroded, or too short, strip about 1/4 inch of insulation using wire strippers. This exposes fresh copper for a solid connection.

Twist the Strands

If the wires are stranded, twist the copper strands tightly so they don’t splay out when inserted into the terminals.

Keep Wires Separate

Make sure the two wires don’t touch each other or any metal surface. Use electrical tape to insulate them if needed.

Step 5: Install the Mounting Bracket

The bracket holds the doorbell securely and aligns it properly.

Position the Bracket

Hold the eufy mounting bracket against the wall where the old doorbell was. Use a level to ensure it’s straight. Mark the screw holes with a pencil.

Drill Pilot Holes

Drill small pilot holes at the marked spots. This prevents the wall from cracking, especially if you’re drilling into brick or concrete.

Secure the Bracket

Insert wall anchors if needed, then screw the bracket into place. Make sure it’s tight and level.

Route the Wires

Feed the two labeled wires through the center hole of the bracket. Leave enough slack to connect them to the doorbell.

Step 6: Connect the Wires to the Doorbell

Now it’s time to wire the eufy doorbell.

Open the Terminal Cover

On the back of the eufy doorbell, you’ll see two terminal screws labeled “Front” and “Trans.” Loosen them slightly.

Insert the Wires

Insert the “Front” wire into the “Front” terminal and the “Trans” wire into the “Trans” terminal. Tighten the screws securely. Don’t overtighten—this can damage the threads.

Double-Check Connections

Gently tug on each wire to ensure it’s firmly in place. Loose wires cause power issues and unreliable performance.

Attach the Doorbell to the Bracket

Align the doorbell with the mounting bracket and press it into place. You should hear a click when it locks. Secure it with the provided security screw using a screwdriver.

Step 7: Install the Chime Module (If Needed)

If you’re replacing a mechanical chime inside your home, you’ll need to install the eufy chime module.

Turn Off Power Again

Go back to the breaker and confirm power is off before working inside the chime box.

Remove the Old Chime

Unscrew and remove the existing chime unit. Note how the wires are connected.

Connect the Chime Module

The eufy chime module connects in parallel with your existing chime wires. Follow the diagram in the quick start guide:

Connect the “Front” wire to the “Front” terminal.
Connect the “Trans” wire to the “Trans” terminal.
Connect the “Rear” wire (if you have a second door) to the “Rear” terminal.

Secure the Module

Mount the chime module inside the chime box using the provided screws. Close the cover.

Step 8: Restore Power and Test

You’re almost done! Now it’s time to power up and test.

Turn the Breaker Back On

Go to the electrical panel and turn the breaker back on. Wait a few seconds for the system to power up.

Check the Doorbell

The eufy doorbell should light up. You may see a blinking LED—this means it’s ready for setup.

Test the Button

Press the doorbell button. You should hear a chime inside (if installed) and see activity on the device.

Pro Tip: If nothing happens, turn the power off again and double-check all wire connections.

Step 9: Set Up the Eufy Security App

The app is where you configure settings, view video, and receive alerts.

Download and Open the App

Search for “eufy Security” in your app store and download it. Create an account or log in if you already have one.

Add a New Device

Tap the “+” icon and select “Doorbell.” Choose “Wired Doorbell” from the list.

Scan the QR Code

Point your phone’s camera at the QR code on the back of the doorbell or in the quick start guide. The app will detect the device.

Connect to Wi-Fi

Select your home Wi-Fi network and enter the password. The doorbell will connect to your network. This may take a minute.

Configure Settings

Customize your preferences:

Motion Detection Zones: Set areas where motion should trigger alerts.
Notification Preferences: Choose when and how you receive alerts.
Video Quality: Adjust resolution based on your Wi-Fi speed.
Two-Way Audio: Test the microphone and speaker.

Test Live View

Tap “Live View” to see the camera feed. Make sure the image is clear and the audio works.

Step 10: Final Adjustments and Mounting

Now that everything works, secure the installation.

Adjust the Angle

If the camera view is too high or low, loosen the security screw slightly and tilt the doorbell. Retighten when satisfied.

Seal the Edges

Use exterior-grade silicone caulk around the edges of the doorbell to prevent water intrusion, especially in rainy climates.

Label the Breaker (Optional)

If your breaker wasn’t labeled, now’s a good time to mark it “Doorbell” for future reference.

Troubleshooting Common Issues

Even with careful installation, problems can happen. Here’s how to fix the most common ones.

Doorbell Won’t Power On

Check the breaker—make sure it’s on.
Test the wires with a multimeter—ensure voltage is present.
Verify wire connections—loose or reversed wires cause power failure.
Check the transformer—replace if it’s underpowered or faulty.

Poor Wi-Fi Connection

Move your router closer or use a Wi-Fi extender.
Ensure the doorbell is within 30–50 feet of the router.
Avoid placing the doorbell near metal objects or thick walls.
Restart the router and re-pair the doorbell in the app.

Chime Doesn’t Ring

Confirm the chime module is installed correctly.
Check that the chime is enabled in the app.
Ensure the mechanical chime isn’t disconnected.
Test with a different chime module if available.

Video Quality Is Poor

Clean the camera lens with a microfiber cloth.
Check for obstructions like dirt, spider webs, or condensation.
Adjust the angle to avoid glare from sunlight or porch lights.
Lower the resolution in the app if bandwidth is limited.

False Motion Alerts

Adjust motion sensitivity in the app.
Exclude areas like trees or busy streets from detection zones.
Enable “Human Only” detection to reduce false alarms.

Maintenance Tips for Long-Term Performance

To keep your eufy wired doorbell working smoothly:

Clean the lens monthly: Use a soft, dry cloth to remove dust and smudges.
Check connections annually: Ensure wires are tight and terminals are corrosion-free.
Update firmware: The app will notify you when updates are available—install them promptly.
Test the button regularly: Press it monthly to confirm it’s working.
Monitor battery (if applicable): Some models have backup batteries—replace them as needed.

Conclusion

Installing a eufy wired doorbell is a rewarding DIY project that boosts your home’s security and convenience. By following this guide on how to install eufy wired doorbell, you’ve learned how to safely remove the old unit, check electrical compatibility, wire the new device, set up the app, and troubleshoot common issues.

Remember: always turn off the power, double-check connections, and test before finalizing. With proper installation and maintenance, your eufy doorbell will provide reliable performance for years.

Now, sit back, relax, and enjoy peace of mind knowing you’ll never miss a visitor again.
